Popis

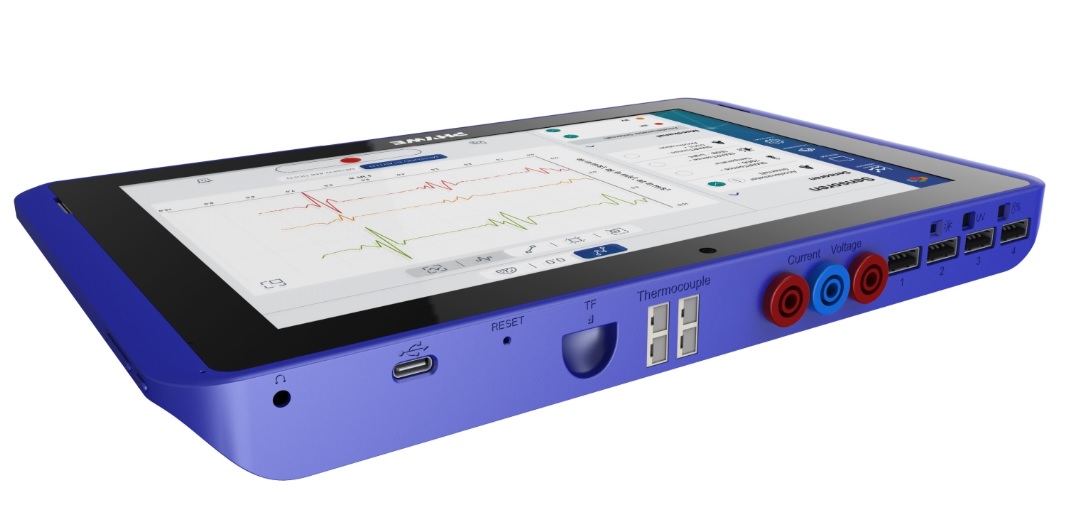

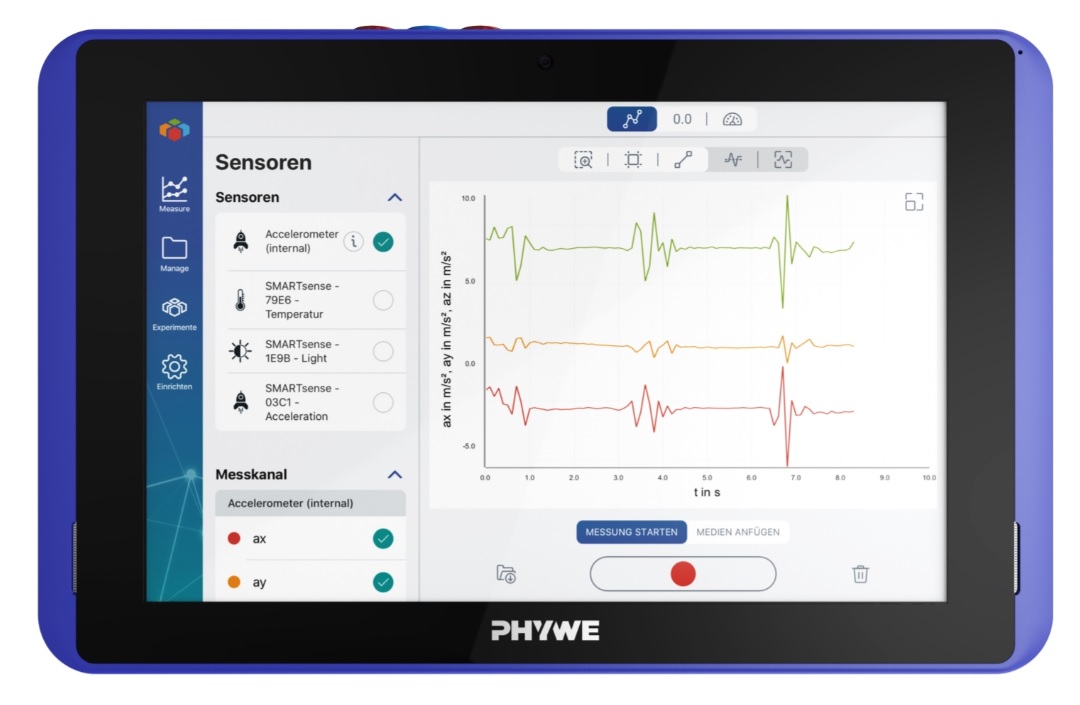

Cobra SMARTlink – The 10-inch Android tablet with 7 integrated measurement sensors. Cobra SMARTlink is a state-of-the-art, high-performance 3-in-1 tablet. It is not only a great measuring and display device for digital science teaching, but also a full featured Android tablet. Due to the brilliant 10.1 inch display combined with the powerful hardware and the 7 internal measuring sensors, it is perfectly equipped for the demands of modern, digital science teaching. Especially in student experiments Cobra SMARTlink is very good, easy and reliable to use.
The large battery with 10.000 mAh and quick charge function ensures your use throughout the whole (school) day. 5 integrated high-speed USB ports for lightning-fast measurements and connection of accessories such as cameras, USB sticks or hard drives..
Equipment and Technical Data
• Octa-Core (8-core) processor 2.0 GHz, 4 GB RAM (DDR3)
• Internal memory 64 GB, expandable to 128 GB with microSD card
• 10.1 inch LCD touch screen (16:10), resolution 1,200 x 1,920 (WUXGA)
• Front camera 5 MP, main camera 12 MP
• Built-in loudspeaker, built-in microphone, 3.5 mm headphone jack
• Bluetooth 5.0, GPS, WiFi standard 802.11 a/b/g/n/ac
• 1 x USB type C to charge the device and for data communication e.g. via USB stick, PC
• Battery: 10.000 mAh
• Weight: 830 g
Internal sensors
• Temperature: 2 x thermocouple type K
o Measuring range: -200…1200°C
o Resolution: 0.1°C
o Accuracy: +/- 3%
o Data rate: 10 Hz
• Voltage: 1 x voltage connection 4 mm sockets
o Measuring range: -30V…+30 V
o Resolution: 20 mV
o Accuracy: +/- 1%
o Data rate: 1 kHz
• Current: 1 x current connection 4 mm sockets
o Measuring range: -1A…+1A
o Resolution: 0.5 mA
o Accuracy: +/- 1%
o Data rate: 1 kHz
• Light (built-in sensor)
o Measuring range: 1-128 kLx
o Resolution: 1 Lx
o Accuracy: +/- 4 %
o Data rate: 10 Hz
• Humidity (built-in sensor)
o Measuring range: 0…100 %
o Resolution: 0.1 %
o Accuracy: +/- 4 % (bei 0-80 %)
o Data rate: 10 Hz
• UV (built-in sensor)
o Measuring range: 0…400 W/m2
o Resolution: 0.1 W/m2
o Accuracy: +/- 4 %
o Data rate: 10 Hz
• Acceleration (on board)
• 4 x USB 2.0 inputs for Cobra SMARTsense sensors, maximum data rate up to 10 kHz
Scope of delivery
• 1x Cobra SMARTlink
• 1x Charging cable type C with charging adapter
• 2x Temperature probes type K
• 2x Banana plugs, stackable, red with 4 mm plug, 50 cm length
• 1x Banana plug, stackable, blue with 4 mm plug, 50 cm length
• 1 x Manual (German, English)
• 1x High quality packing carton incl. storage box
